Internal VRD's

AS-7

Suits Lincoln 400AS, 400AS-50, SAM400 Diesel Welders, Calibration Free, Fully Electronic, Contactor Free. Approx Half Price Of Contactor Based Vrd Units. Rapid Arc Start. Patented Technology. Welder Can Be Load Banked As Per Manufacturers Spec's. High Ocv Warning Built In (Over 35 Volts). Special Fitting Training Not Required.
LPHS

N.A.T.A. Tested Internally Fitted Vrd Suits Most Inverter Type Welding Machine. Click On The Spec Sheet See If Your Machine Can Be Fitted With a LPHS.

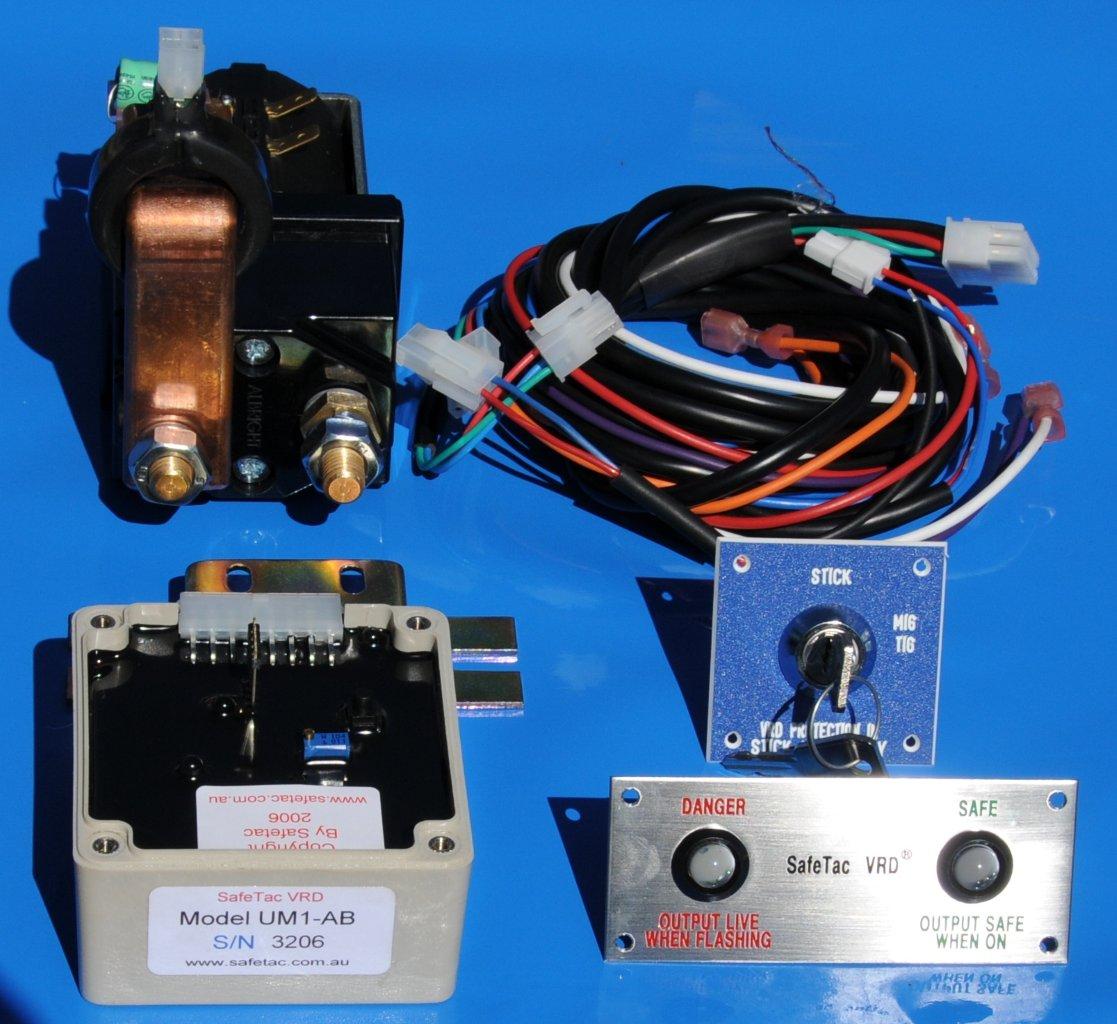

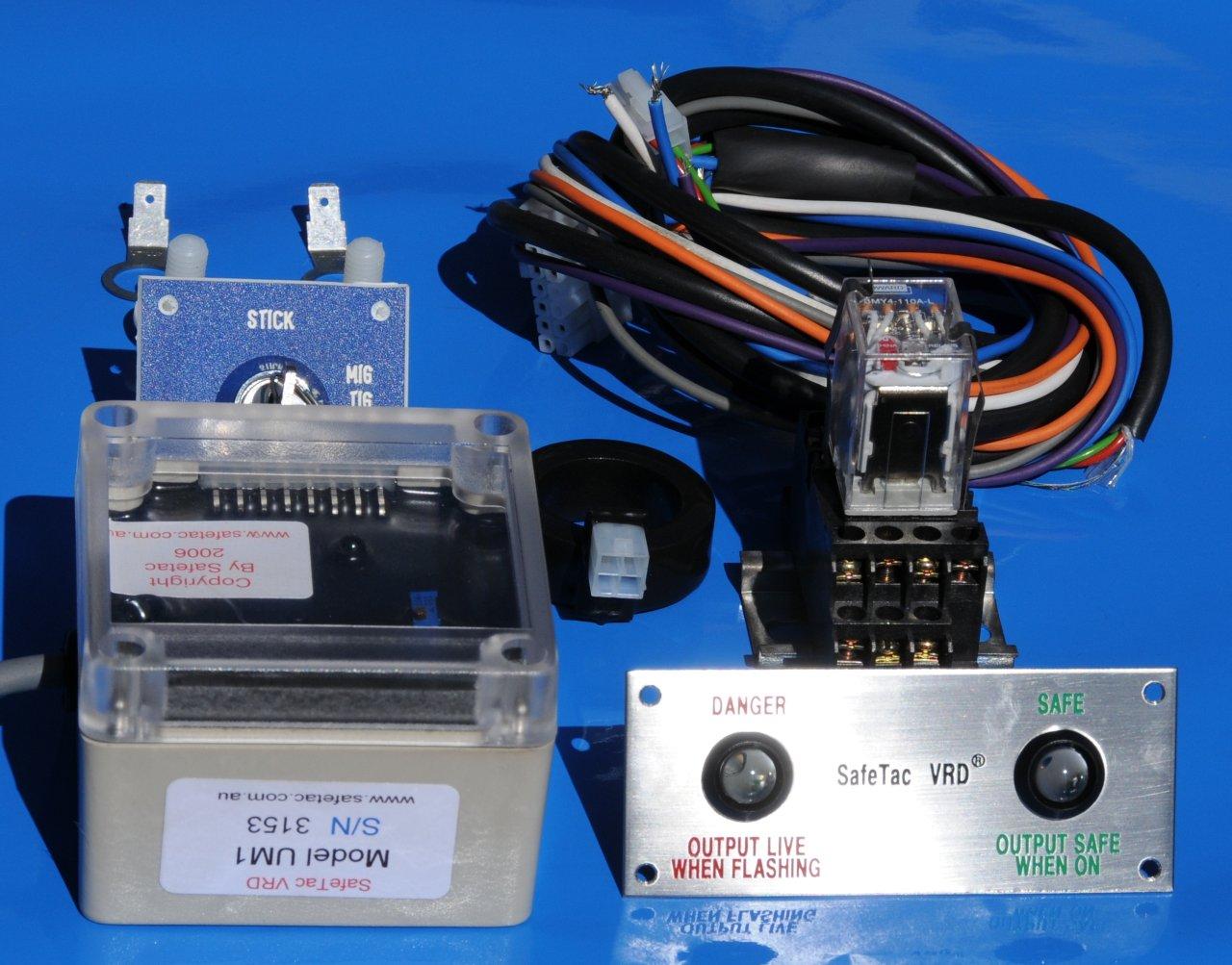

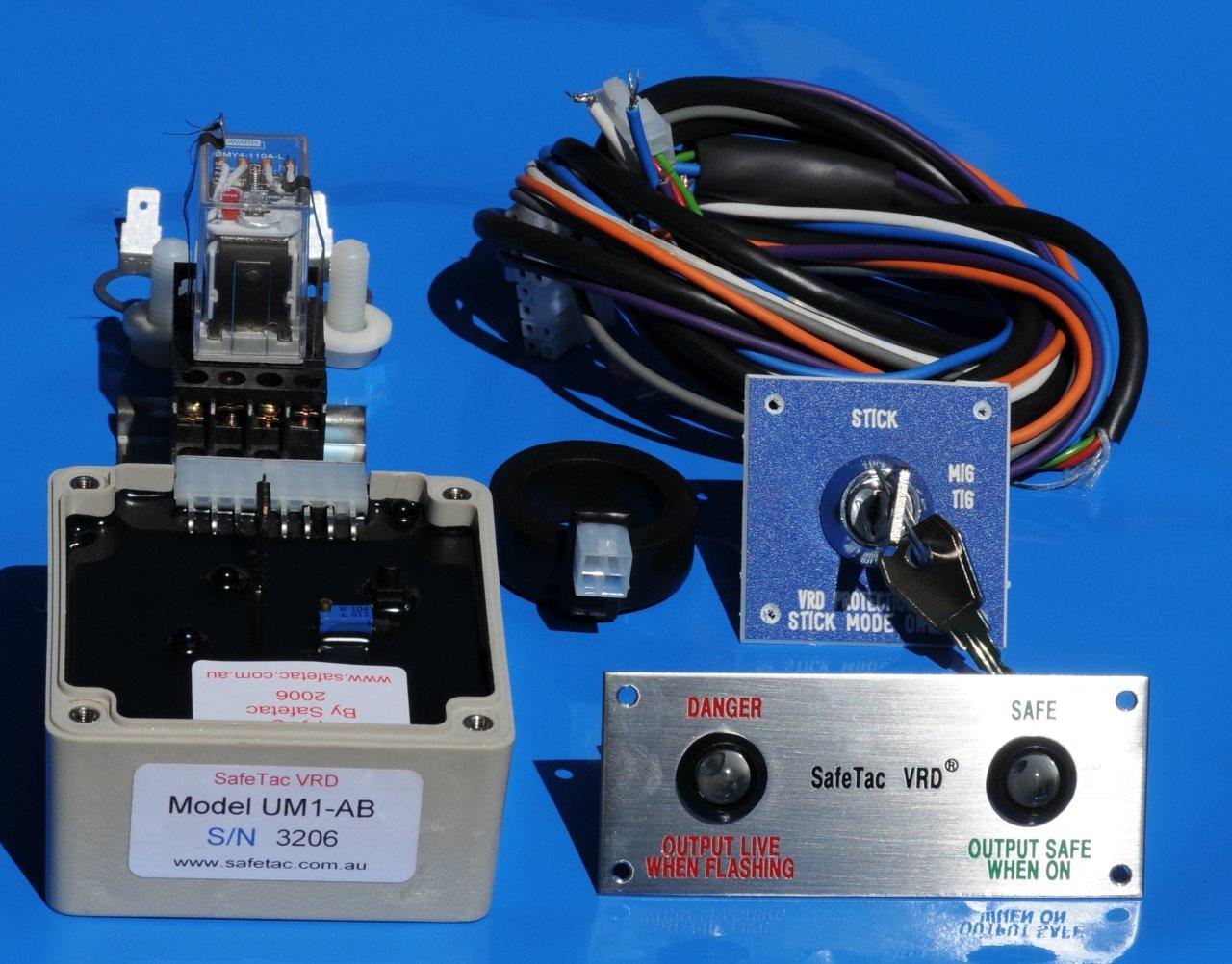

UM1
N.A.T.A. Tested Internally Fitted Vrd Suits Larger Electronically Controlled Welders Such As Lincoln DC 400 Lincoln DC 600 & Miller Airpak New Series Cigweld MPM6/300, MPM12/400 ,MPM15/600,Esab KHM400. Programmable Timing And Indication (1 Or 2 Led Flashing Or Non -Flashing)
VRX
N.A.T.A. Tested Internally Fitted Vrd Suits Full Current AC/DC And Reverse Polarity Applications This VRD Is Rated At 400 Amps At 100% Duty Cycle. Automatic ,Suits older style Lincoln 400AS & 500AS deisel welders Reverse Polarity Sensing, All Plug In No Soldering Required 1/3 The Size Of The GPDK & GPRK Series, One Module One Loom Suits All.

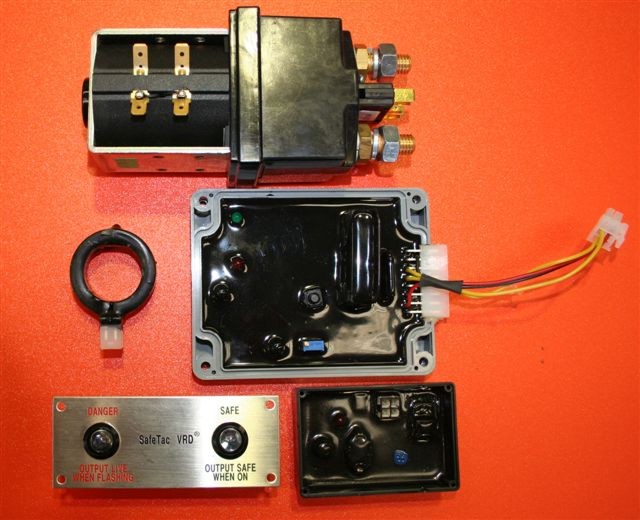

VRX-AB
N.A.T.A. Tested Internally Fitted VRD AC/DC operation
Suits Miller Bobcat 250 petrol & deisel ,Lincoln 230`+,MOSA TS300, Denyo TlW380 SSWK, TlW300SSK, TlW450 SSWK,BLW280, BlW350.

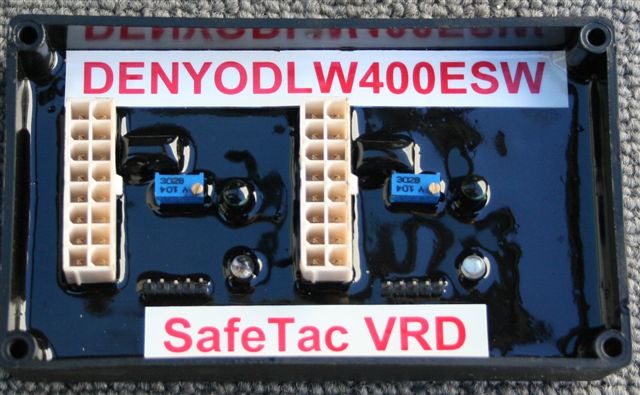

DENYO DLW400ESW
DLW400ESW set's a new direction in VRD performance Fully programmable output voltage & post weld vrd turn on time.
3 to 35 vdc output voltage 100 to 500ms turn on time. Set to 30 VDC & .3 post weld vrd turn on time.
Instant strike & restrike on Lincoln 5P cellulose rods. Automatic wirefeeder operation (Lincoln LN25,Cigweld Stealth VS212 , Miller Suitcase Extreme 12VS) Calibration free once voltage is set no further calibration is required. Built over voltage warning. Minimal installation time less than 1 hour.

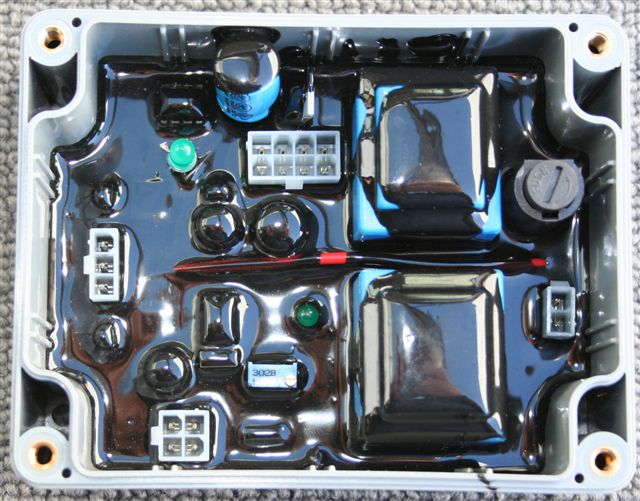

PC1 (PHASE CONTROL VRD)
PC1 New fast striking vrd works on input of electric welder. Patented technology + power savings due to lower idle current. work's with most single & 2 phase AC/DC transformer type machines such as 415 VAC Lincoln TM 300/300 TM 400/400,Cigweld Transarc 400 ,Cigweld tradesman etc. Fully programmable output voltage & VRD turn on time. Excellent strike & restrike properties Suits machines with phase input current to 200 Amps Minimal installation time less than 1 hour.

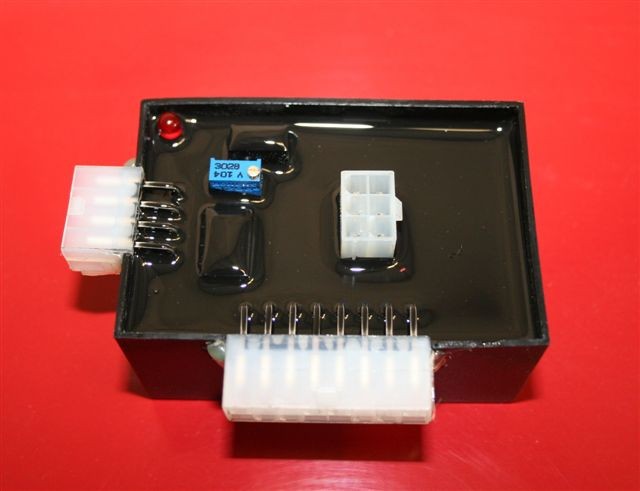

LINC4
Suits Lincoln DC 400 Fast Strike & restrike on GP & cellulose rods. 1 Hour maximum fitting time , no holes to drill , no switches or relays machine stays as is simply plug in VRD & connect 3 wires. Machine works as per factory but with reduced OCV in Stick / Tig mode. Normal voltage sensing wire feeder operation ( Lincoln LN25 ,Miller suitcase extreme , cigweld stealth VS212) Reduced OCV adjustable from 12 to 35 VDC VRD turn on time software programmable from 50 milliseconds to 5 seconds. Incorporates new SafeTac Duoset stove piping & gouging function (Optional) VRD high OCV warning.

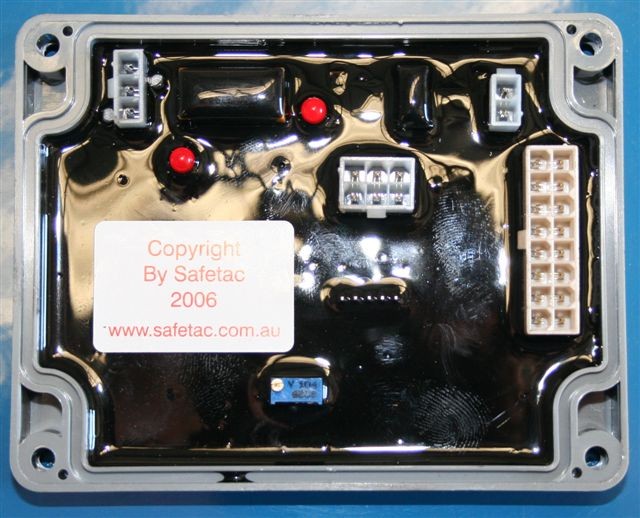

MILLER 600XP
Suits Miller 600X + Miller Airpak. Fast striking. Output is set to 14.4 volts at full RPM 21 Volts at idle. VRD can be set to 28 volts at full RPM 30.5 volts idle by an internally mounted switch. Options available SafeTac Duoset™ normally VRD is set to .3 seconds turn off time if button is pressed 3 times blue LED will turn on and VRD turn on time will change to 2 seconds for gouging or stove pipe operations. If the welder is not used for 20 minutes, button is pressed and held for 4 seconds or is reset by turning the machine off then on VRD turn on time will automatically reset to .3 seconds. Also a N.O. output is also included for connection of a Siren or indicator to indicate if the VRD has failed or the output is above 35 ~ 40 volts as per AS1674.2 2003. This system can also be fitted with a press button to simulate fail/safe operation prior to use of machine. This relay can also be used to shut down engine on VRD or welder failure. All VRD turn off, turn on times is software programmable.

View nearest distributors
